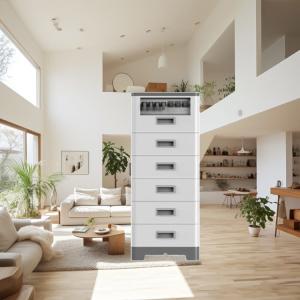

4 Module 20.48kwh 48V Stackable Lithium Iron Batteries Pack Stacked LIFEPO4 Battery EU Solar Energy Storage Battery
ESS Lithium Battery Matters needing attation
1. The battery string must be charged within 24 hours after discharge
2. Lithium battery for a long time should not be charged 50%-80% electricity, stored in a dry and coolenvironment, and every three months charged once, in order to avoid storage time is too long, the batterydue to self-discharge caused by low power, resulting in irreversible capacity loss;
ESS Lithium Battery Product Characteristics
ESS Lithium Battery Specification
| Model | 1 Module | 2 Modules | 3 Modules | 4 Modules | 5 Modules | 6 Modules |
| Nominal capacity(kwh) | 5.12 | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 |
| Operating voltage | 48V | |||||
| Weight (Kg) | 96.5 | 151.5 | 206.5 | 261.5 | 316.5 | 371.5 |
| Nominal voltage | 48V | |||||
| Dimension (mm) | 600x460x457 | 600x460x637 | 600x460x817 | 600x460x997 | 600x460x1177 | 600x460x1357 |
| Battery cell type | LiFePO4 | |||||
| Communication method | CAN/RS485/RS232 | |||||
| Operating temperature range | Charging: 0~45℃ Discharging: -10~50℃ | |||||
| Protection level | IP55 | |||||
| Installation method | Floor installation | |||||
| Cycle life | >6000 Cycles(80%DOD) | |||||
| Peak charge/discharge current (@25℃ ,5S) | 100A | |||||
| Self-discharge rate | ≤3.5%/month/@25°C | |||||
| Parallel function | 1S~6S | |||||
ESS Lithium Battery Connection Diagram
FAQ
1. Is the battery used in the battery pack grade A?
Yes, we only use Grade A and Brand new cells inside.
2.Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Same capacity matched
3.How do I store my batteries?
When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C～35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.
4.What is the cycle life of the battery?
6000 cycle life @ 80% DOD
5.What's the warranty of your 48V/51.2V battery pack?
5 years warranty, if there is broken item under quality problem within warranty time, we will offer free replacements or refund, up to your needs
6.Do your batteries support series or parallel connection?
Our 48V battery packs support up to 15pcs in parallel, if you need series connection, please contact our sales staff
